5.1" Dot Matrix Transflective LCD Module , Industrial LCD Monitor Module

160*128 graphics dot matrix LCD module, 160128 LCM industrial control display screen,129 (width) * 102 (high) mm

Item number: FLG160128A-Ver2.0

Key Description: 160*128 graphics dot matrix LCD module, 160128 LCM industrial control display screen, parallel port

Category: Graphic

Product label: STN graphic LCD module

Applications: security, power equipment, industry, medical display, communication equipment, instruments and meters

Panel type: STN-LCD

LCD module

Panel size: 5.1"

Resolution: 160 * 128

Physical shape: flat rectangle

Dot size: 0.54 (width) * 0.54 (high) mm

Point spacing: 0.04 (width) * 0.04 (high) mm

Display size: 92.76 (width) * 74.2 (high) mm (A.A)

Visual size: 101 (width) * 82.2 (high) mm (V.A)

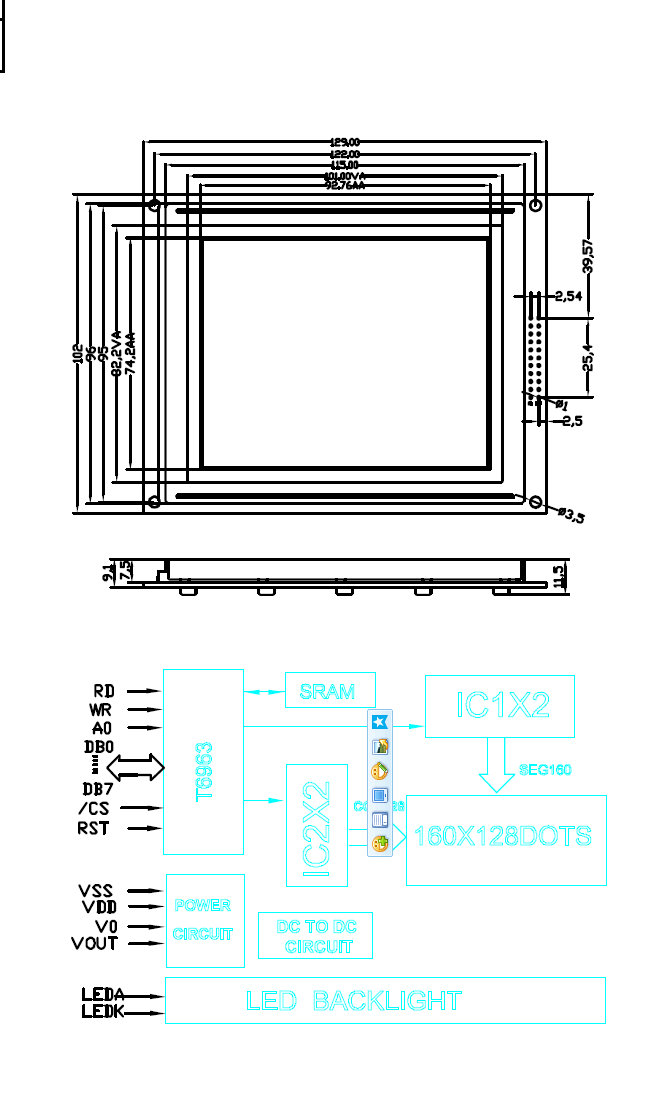

Appearance size: 129 (width) * 102 (high) mm

Max thickness: 12 mm

Polarizer: transmissive type

Color mode: gray film positive display

Best viewing angle: 6 o'clock

Display color: monochrome

Duty cycle: 1/128

Controller: RA6963

Bonding mode: COB

Backlight type: WLED

Signal type: parallel port data

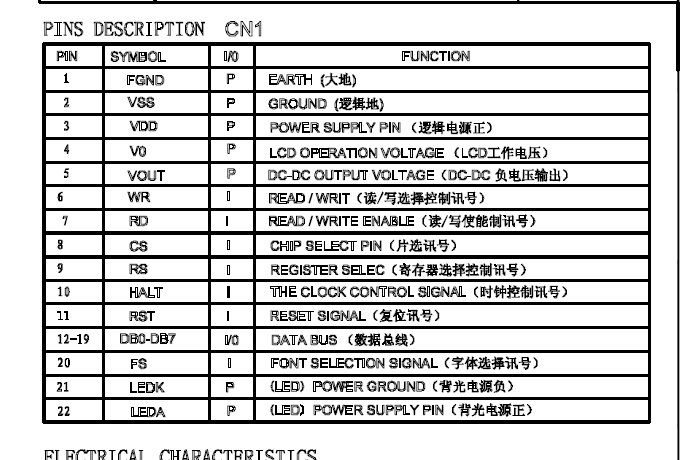

Signal pin: 22Pins

Touch screen: None

Operating temperature: -20 ~ 70 degrees C

Storage temperature: -30 ~ 80 degrees C

lcd screen module

lcd display module

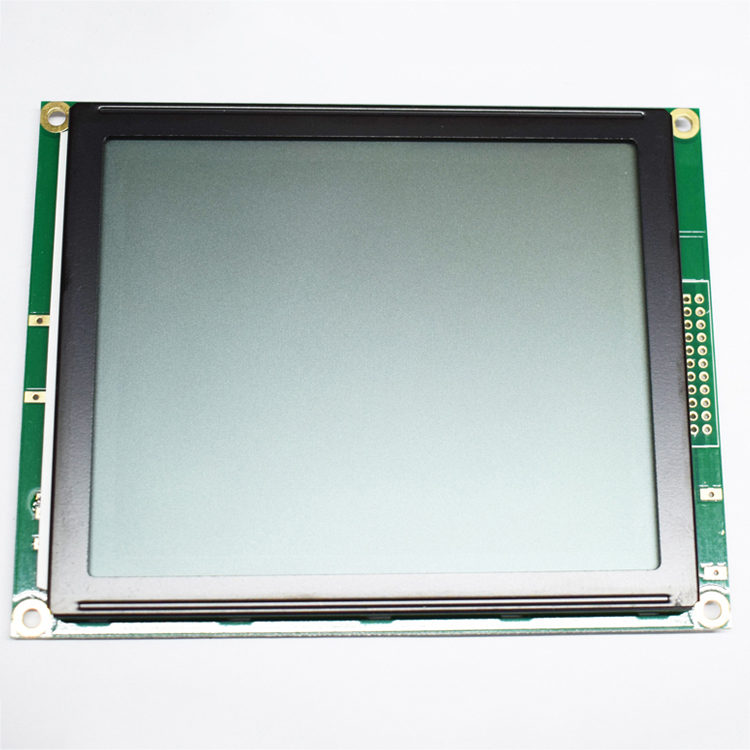

5.1" Dot Matrix Transflective LCD Module , Industrial LCD Monitor Module Images
